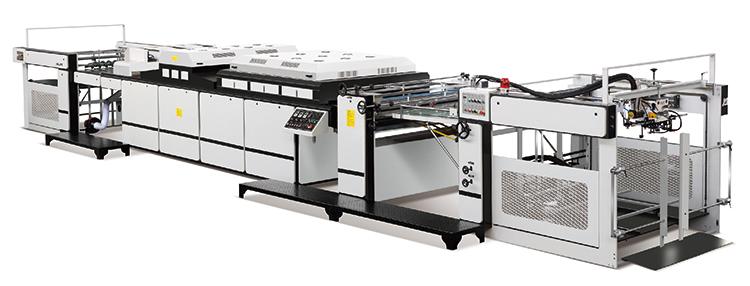

Usage: It is a paper surface varnishing (UV) and polishing machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²); various paper prints after processing greatly improve surface gloss; the print surface has the damp-proof and water-proof effects. The machine adopts the reversing mechanism to make the oil layer thinner and more even. The machine also adopts a computer air knife device, a strong absorption mechanism and a right-and-right scraper transmission mechanism. It has the characteristics of beautiful appearance, stable and reliable performance, simple and convenient operation and high automation degree Main Technical Parameters: Model SE-1200 Manual SE-1200 Automatic Length of Roller 1250mm 1250mm Suitable Paper Thickness 80-500g/m² 80-500g/m² Max. Working of Paper 1150 1150*900mm Power 380v 50Hz 380V 50Hz Motor Power 65kw 70kw Infrared Heating Power 22kw 22kw Ultraviolet Heating Power 3*8kw or 2*8kw 3*8kw or 2*8kw Overall Dimension 9800*2000*1600mm 11800*2000*1800mm Machine Weight 3000kg 4500kg Package Wooden case with free fumigation Wooden case with free fumigation Loading 40” container 40” container Remark: accept customization of equipment in various specifications
Double stand belt dedusting automatic glazing oiling machine video：
Automatic A glazing machine
Mechanical color according to the actual picture video is for reference only, technical parameters performance and characteristics are subject to change without prior notice!
