Usage:
Paper Film Laminating Machine as a professional equipment used for plastic film laminating on the
surface of paper printed matter. Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof. it’s the best choice for printing and laminating enterprises of all scales.

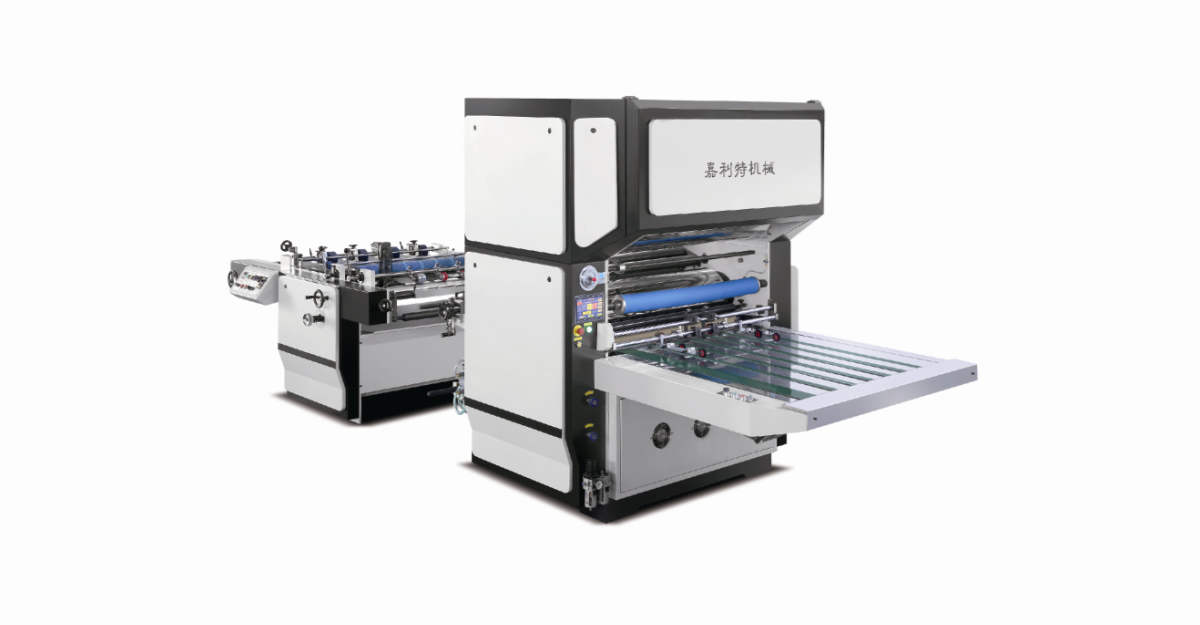

FM-1050 Vertical High-precision and multi-duty laminator is a newly developed product geared to the market demand, which is specially designed for water-based and dry laminating glue. The main unit is applied in cementing, drying and laminating, easy to operate. It can be used for multiple purpose, such as oil-type, water-based, and dry-type lamination. It is a new style film laminating machine.
Processing line:
Paper feeding-lap edge-gluing and pressing-cutting-collecting
Function introduction:
1.Manual paper feeding, lap edge device to ensure the accuracy (≤±3mm) of paper feeding, automatic lap edge device speed less than 30m/min.
2.Laminating main parts: Include three units: gluing unit, drying unit, pressing unit.
Gluing unit: Chromed high brightness gluing rollers to coat evenly and economically. Gluing precision ≤0.008mm.
Drying unit: Use large diameter heating roller (Φ500- Φ600), temperature is controlled within 80, Strong hot air cycle device and fast drying. Avoid the glue film curl because the high temperature.
Pressing unit: Oil heating roller (Φ320mm), rubber pressure roller (Inside diameter 63mm), the max total pressure is 10T, ensure the good quality with high speed film laminating.
3.Cutting machine:
Using the flying knife device, easy operation. Ensure paper above 105g could be easy cut and break. Cutting machine with thin blade anti-curl device. Could adjustment the thin paper appears the phenomenon of curl when they are cutting. Cutting machine adopts frequency control and host synchronous adjustment function with the laminating machine.
Technical Parameters:
Model | FM-1050 with slitting machine | FM-1050 |
Max Effective Width | 1050mm | 1050mm |
Working Speed | 5-40m/min | 5-40m/min |
Pressing Temperature | 30-120°c | 30-120°c |
Pressure | 5-15Mpa | 5-15Mpa |
Overall power | 46kw | 45kw |
Overall Dimensions | 6500*2000*2300mm | 3000*2000*2300mm |
Weight | 4500kg | 3500kg |
Customize large size allowed.
产品视频：
Mechanical color according to the actual picture video is for reference only, technical parameters performance and characteristics are subject to change without prior notice!
