PRODUCT DESCRIPTION

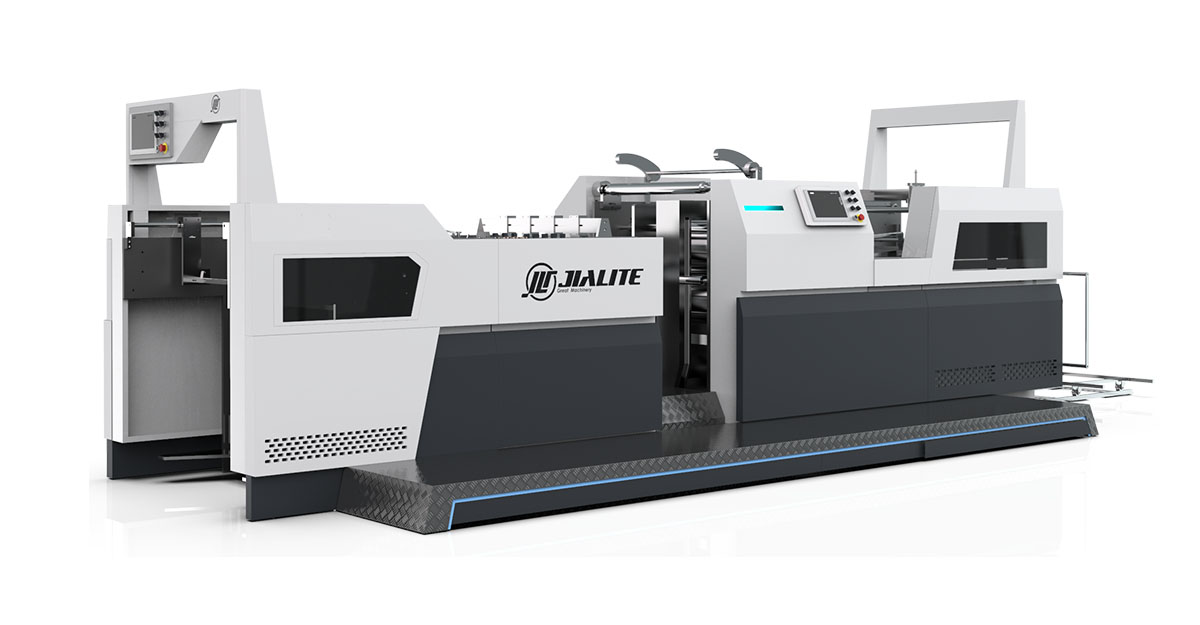

FY series pre-coat glue automatic thermal laminating machine as a professional equipment used for plastic film laminating on the surface of paper printed matter. Widely applicable for laminating in advertising poster, Picture books and magazine, display book, color paper box, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof.
SPECIFICATION
Model | NFY-A |
Max. paper size-mm | 780*800 |
Min. paper size-mm | 260*210 |
Speed-m/min | 5-80 (thickness of the paper, variety, and glue quality |
Paper thickness-g/m2 (round knife slitting) | 105-500 |
Overlap precision-mm | ≤±2 |
Film Thickness | 12-25um |
Paper Feeding Pile height | 1000mm |
Heating Roller Dia | 380mm |
Power | 380V-50/60Hz-3P |
Max. Film Roll diameter | 400mm |
Power Required | 25kw |
Working Power | 18kw/h |
Weight | 4500kgs |
Dimension (layout) | 6100*1730*2070mm |
Loading | One of 20” GP |
Remark: accept customize large size of the machine depend on customer need.
1050*1250; 1250*1250mm; 1250*1450mm, 1250*1650mm
FEEDING UNIT
1.The automatic paper feeding part has the function of paper pre-piling and paper feeding continuously to guarantee
laminating process continuous and stable, Non-stop paper sheet feeding and collecting, save time and improve
productivity.
2.Feeder for high speed printing machine which has stable paper feed and accurate and simple operation.
CONVEYING TABLE AND OVERLAP
1.The conveying table adopts customized stainless steel corrugated board
2.The brush wheel and rubber pressing wheel move smoothly
3.Servo motor overlap, improve accuracy of lap, error≤±2mm
LAMINATOR HOST
1.The steel hot-press steel roller (Dia.380mm) adopts electromagnetic heating system, electromagnetic heating cover is installed on the top of the steel roll, Rapid heating, energy saving and environmental protection.
2.Side guide make sure the paper on the same line, automatic overlap device. The paper edge lap device controlled by servo motor independent, that accuracy of up to ≤ ±2mm.
CUTTING UNIT
1.Cutting part with round (fly) knife device, easy adjustment. It can make sure effective cutting for paper more than 105g/m².
2.Cutter with the anti-roll device, it could be appropriate to improve the curl phenomenon when the thin paper to be pull-breaking.
3.The cutter adopts variable frequency speed control which could able to synchronize with the laminator unit part.
NON-STOP COLLECTOR
1.The automatic paper collecting part has the function of collecting paper without shutdown, the collector size is matched with the paper feeder.
